Bowing Walls

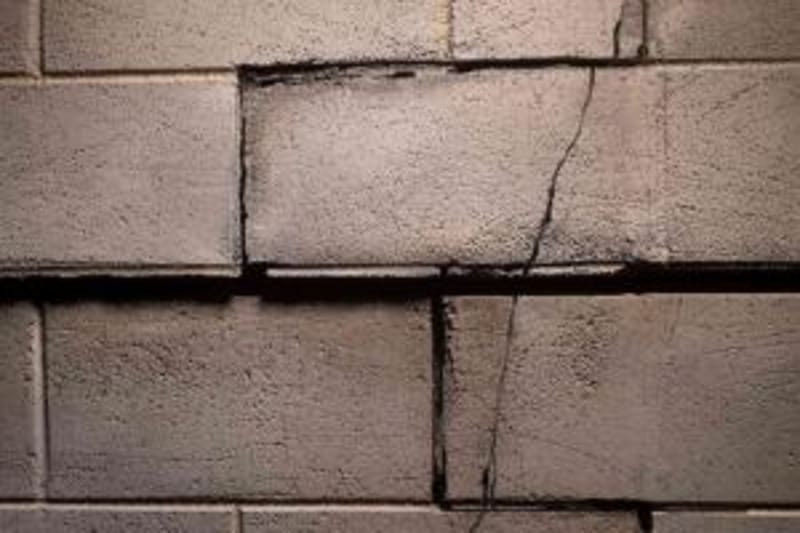

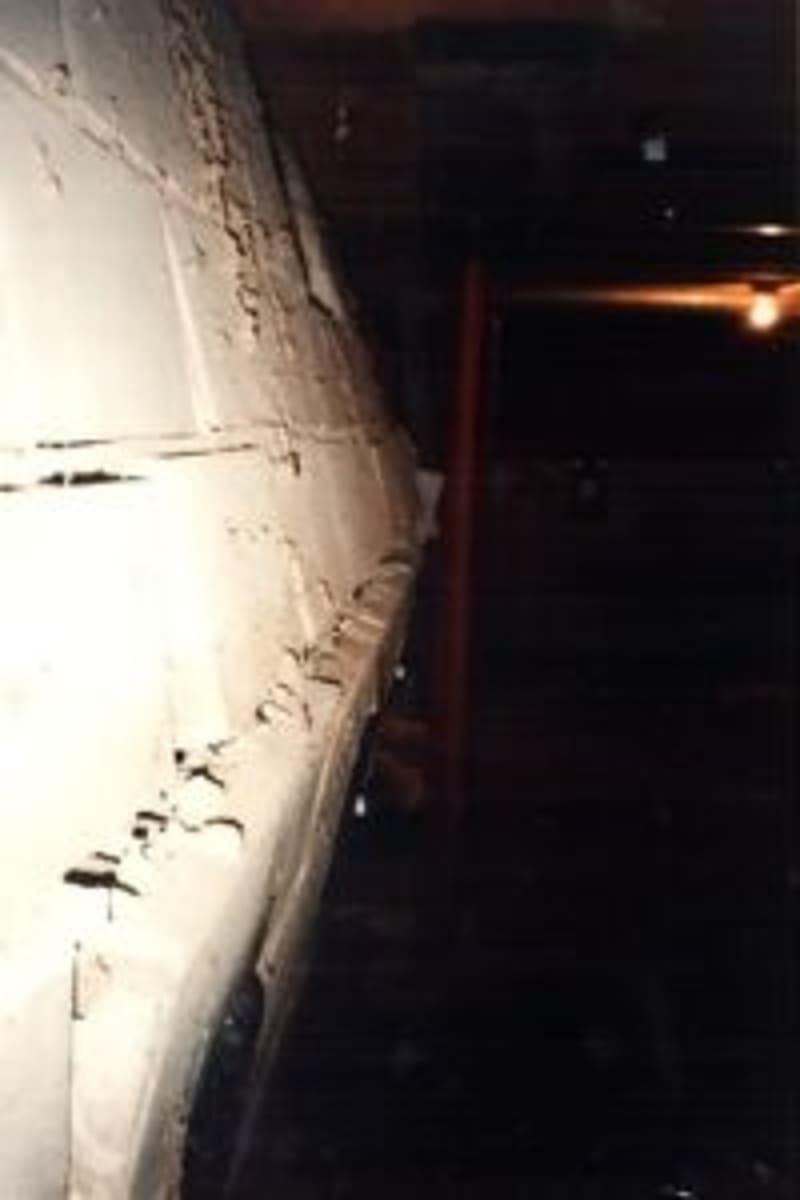

You notice the wall in your basement isn't quite straight anymore. There's a curve to it, maybe subtle, maybe obvious. There might be a horizontal crack running across the middle of a block wall, or the wall seems to lean slightly inward at the center. It doesn't look the way it used to, and you're not sure if it's serious.

It is. Bowing basement walls are one of the more urgent foundation problems a home can develop, and they don't stabilize on their own. The soil pressure causing the movement continues through every wet season and freeze-thaw cycle our Iowa service area deliver. The earlier the problem is addressed, the more repair options are available and the lower the cost.

Anchored Walls has repaired bowed basement walls across our Iowa service area since 1978. Here's what causes it, what to look for, and how it gets fixed.

Not every bowing wall requires the same repair. The right solution depends on how far the wall has moved, what type of foundation it is, and what the soil and site conditions look like. A free inspection is what determines the appropriate approach. These are the systems Anchored Walls installs for bowed wall repair across our Iowa service area.

Carbon Fiber Straps are used for walls in the early stages of bowing, typically with less than two inches of inward movement. Carbon fiber straps are bonded directly to the wall surface with epoxy and anchored to the floor joists above and the slab below, creating a high-tension reinforcement that resists further movement. Installation requires no excavation and leaves a low-profile finish that can be painted over. Most installations are completed in one to two days.

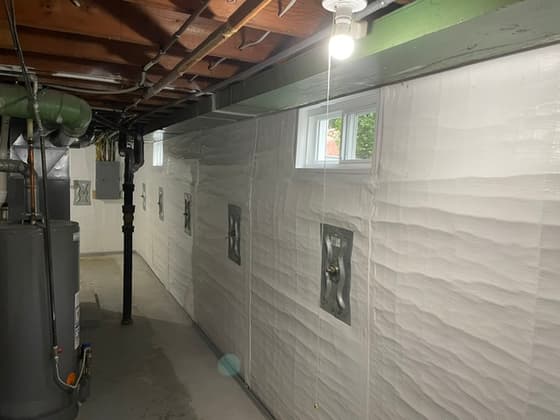

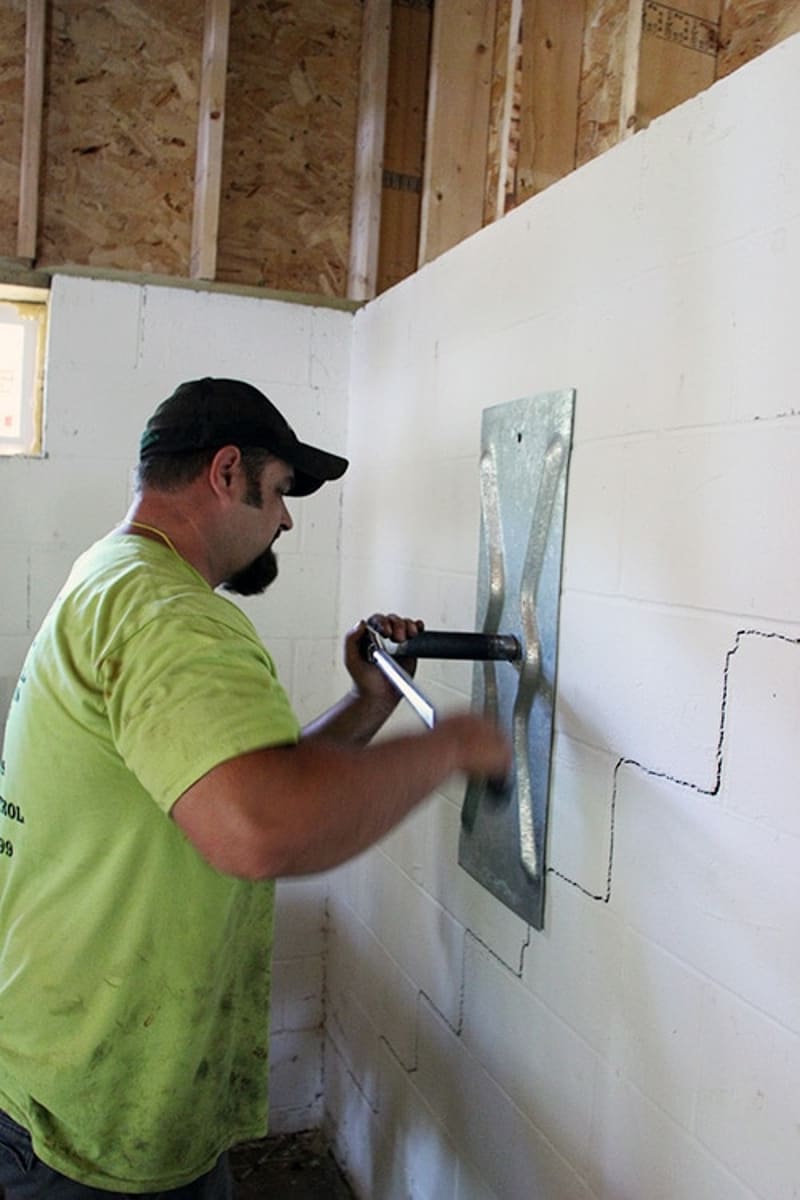

Wall Anchors are a permanent, adjustable solution for walls that have moved beyond what carbon fiber alone can address. A steel rod connects an interior wall plate to an exterior anchor plate driven into stable soil outside the foundation. The system counteracts the lateral pressure pushing against the wall and can be gradually tightened over time during dry conditions to slowly pull the wall back toward its original position. Wall anchors require a small excavation outside to set the exterior plate.

Helical Tie-Backs work on a similar principle to wall anchors but are drilled at an angle through the wall into the soil outside rather than requiring a separate excavation point. They're particularly useful in situations where a standard wall anchor installation isn't practical due to site conditions.

The Waler Steel Beam System is reserved for walls with more significant bowing, typically beyond two inches, or where shear failure is present along the mortar joints. Heavy-duty steel beams are installed vertically along the interior wall, anchored at the top and bottom, and spaced approximately every four feet. The system stops further movement and can be used in combination with wall anchors for severe cases. It works with block, poured concrete, and wood foundation walls.

In some situations, more than one system is used together. A wall with significant bowing and active water intrusion may require both structural repair and interior drainage as part of the same scope of work. The inspection determines what combination makes sense for the specific wall and conditions.wall stands and which repair options are still available.

If your basement wall is bowing, cracking, or showing any of the signs covered on this page, the right next step is a free inspection from a specialist who can measure the movement, assess the wall condition, and tell you exactly what repair options apply to your situation.

Anchored Walls has repaired bowed basement walls across our Iowa service area since 1978, backed by a Lifetime transferable warranty and a Money-Back Guarantee. Inspections are free, estimates are written, and financing is available through a participating lender.Schedule your free bowed wall inspection with Anchored Walls and find out where your wall stands before another Iowa winter puts it to the test.
